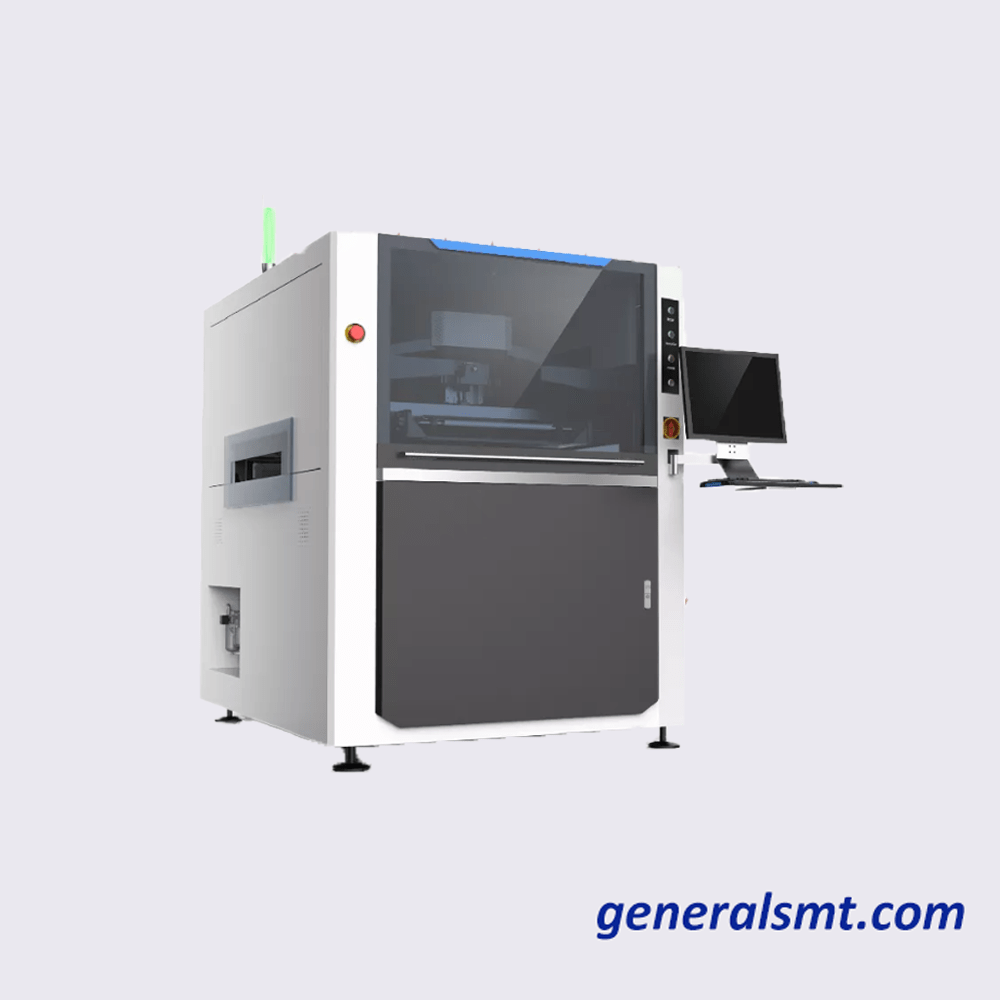

Full-Auto SMT Stencil Printer is a high-precision automatic solder paste printer, corresponding to industrial 4.0 and the MES system. through a higher level of automation, achieve zero defects. TOP Advantage: 1. Simple: combined with advanced international concepts, based on the Oriental-designed operating system, easy to learn. 2. Expertise: learn imported reflow oven advanced design concepts, and the machine core components using imported top brands. 3. Hedging: Import hardware configuration, the low failure rate in production, more than a decade of service life Model SP4034 SP5151 SP6561 SP1500(LED) Frame Size (mm) 470*370 ~ 737*737 470*370 ~ 737*737 650*400 ~ 850*850 737*370 ~ 1800*750 PCB Size (mm) 50*50 ~ 400*340 50*50 ~ 510*510 80*50 ~ 650*610 80*50 ~ 1500*350 Transport Direction Left-Right; Right-Left; Left-Left; Right-Right Support System Magnetic Pin/Up-down table adjusted/support block Clamping System Side clamping, vacuum nozzle, Automation retractable Z pressure Printer Head Two independent motorized print head Squeegee Type Stainless steel (standard), plastic Cleaning System Dry, Wet, Vacuum Inspection 2D Inspection (Standard) Power Supply AC:220±10%,50/60HZ,3Kw Control Method PC Control Dimension (mm) 1220*1355*1500 1220*1530*1500 1330*1530*1500 2500*1220*1500 Model SP-5134 SP-6534 SP-1200 Frame Size (mm) 470*370 ~ 737*737 470*370 ~ 850*750 737*370 ~ 1500*750 PCB Size (mm) 50*50 ~ 510*340 50*50 ~ 650*340 80*50 ~ 1200*350 Dimension (mm) 1220*1355*1500 1330*1530*1500 2200*1200*1500
